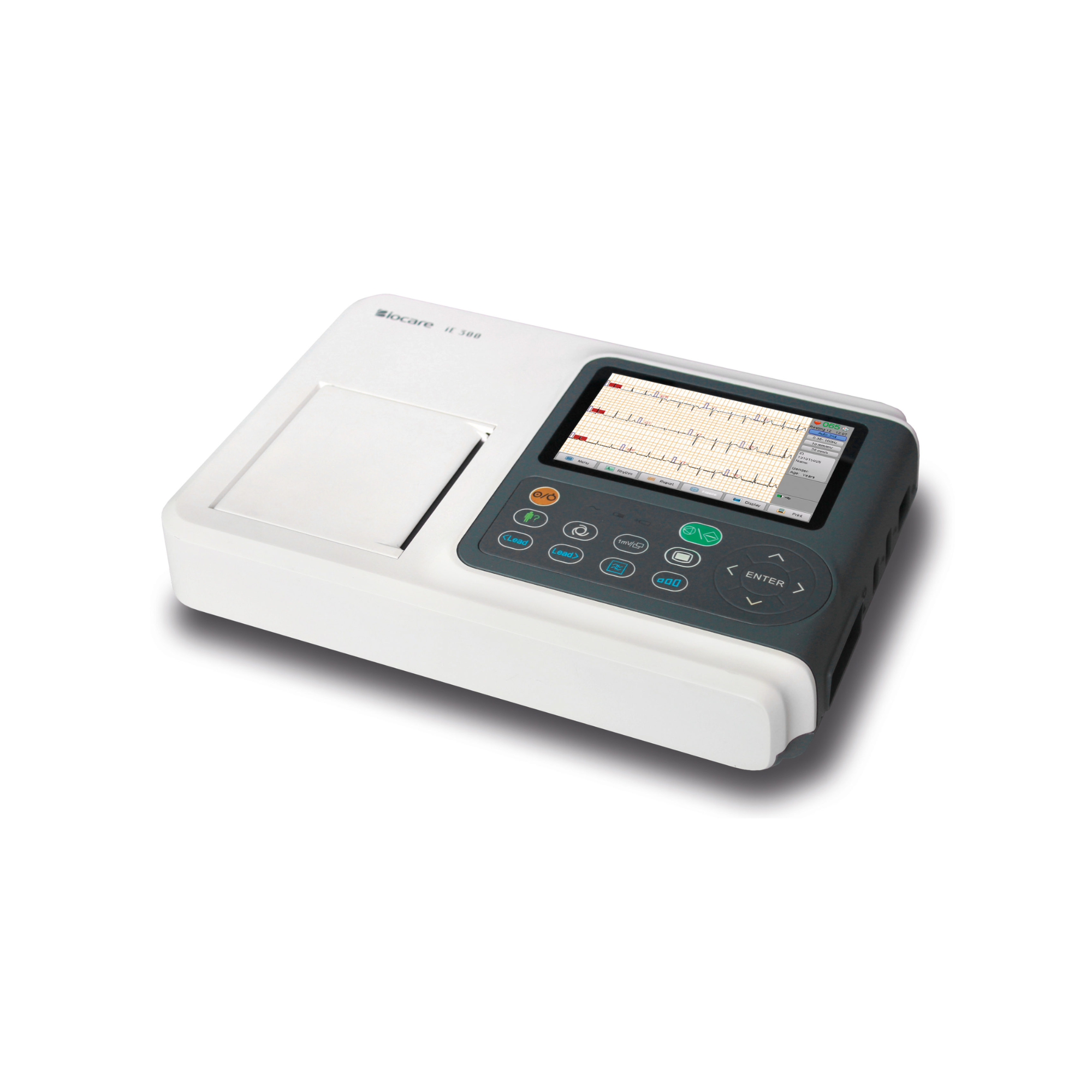

3-Channel Electrocardiograph Cardio IE300 - BIOCARE

ECG 3 Track Cardio IE300 Biocare

General characteristics:
• On-screen menu with navigation key.
• Connectivity: 2 USB/1 network.
• Internal memory: 3,000 traces.
• Exportable formats (USB): PDF, XML, JPEG, DICOM
• Recording modes: automatic, manual, rhythm (30 to 300 s with RR interval analysis)
• Calculation of parameters and interpretation
• 5-inch high-resolution color display, 12 leads (3×4, 3×4+1R, 6×2, 6×2+1R, 12×1)
• Recording paper: thermal, 80 mm x 20 m (roll)
• Print sizes: 1×12, 1×12+1R, 3×4, 3×4+1R, 3/2
• Sensitivity: Auto, 0.625, 1.25, 2.5, 5, 10/5, 10, 20/10, 20 and 40 mm/mV
• Printing speeds: 5 / 6.25 / 10 / 12.5 / 25 / 50 mm/s
• Measurement parameters: Ventricular rate, PR interval, QRS time limit, QT/QTC interval, P/QRS/T axis, RV5/SV1 amplitude and RV5+SV1 amplitude
• Signal acquisition: simultaneous 12 leads, 10 s to 24 s
• Filters: EMG, AC, baseline (0.01 to 0.8Hz)
• Sampling rate: 8000 Hz
• Low-pass filters: 25, 35, 75, 100, 150, 250Hz
• Response frequency: 0.05 Hz ～250 Hz

Comes with:
Patient cable with banana plugs, 4 limb clips, 6 precordial bulbs, 1 user manual
Weight: 1.3 kg
Warranty : 2 years (except accessories)
Power supply : 1 x 11.1 V ~ 2600 mAh lithium-ion battery (up to 4 hours of battery life)
